HPHT Diamond Logs | Robust Dressing Solutions for Grinding Applications
Key Attributes:
Easy edge sharpening, excellent toughness, edge collapse resistance, superior sharpness, ideal for complex precision dressing.
Manufactured from pure single crystal diamonds, these HPHT diamond logs are precision-engineered for high-performance bar dresser production. They provide exceptional stability and durability in demanding operations, especially for precision machining and grinding wheel conditioning.
Material Characteristics:
Exhibits high hardness, outstanding wear resistance, superior strength, high elastic modulus, efficient thermal conductivity, low friction coefficient, strong adhesion resistance, along with exceptional corrosion resistance and chemical stability - satisfying all precision cutting tool requirements.
Primary Applications:
• Diamond Multi-point/Strip Dressing Pens
• Flat Tip & Pointed Tip Grinding Wheel Dressing Pens
• Diamond Pen Plate Dressing Knives
• Diamond Dressing Rollers
Industrial Implementation:
-
Abrasive wheel conditioning via precision dressers
-
Non-metallic/non-ferrous material processing with specialized blades
-
Surface finishing refinement using burnishing instruments
-
High-friction environment wear-resistant components
-
Custom tooling for niche manufacturing
Standard Dimensions:
3x0.6x0.6 | 3x0.8x0.8
3x1.0x1.0 | 3x1.2x1.2
4x0.4x0.4 | 4x0.6x0.6
4x0.8x0.8 | 4x1.0x1.0
4x1.2x1.2 | 4x1.5x1.5
Customization Capabilities:
• Maximum length: 20mm
• Maximum width: 7mm
• Thickness options: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm
• Variable shapes and crystal orientations
The logs are also available in other materials(CVD/Polycrystalline):
|
|

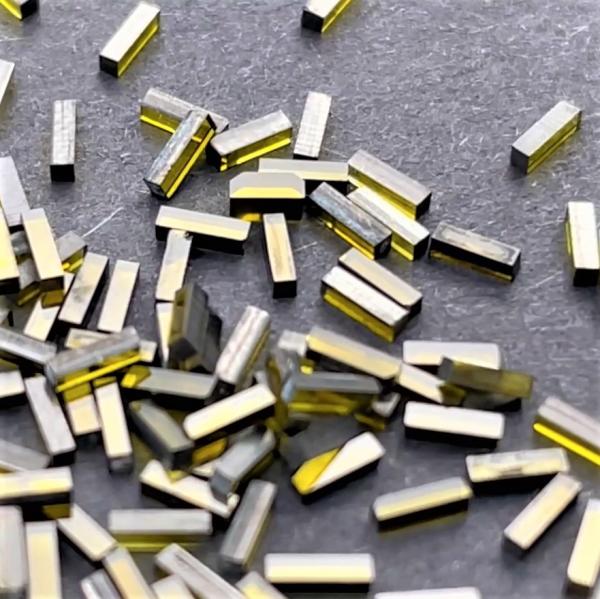

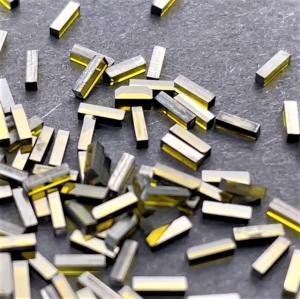

Custom HPHT Diamond Logs | Precision Grinding Wheel Dressing Tools Images
|
